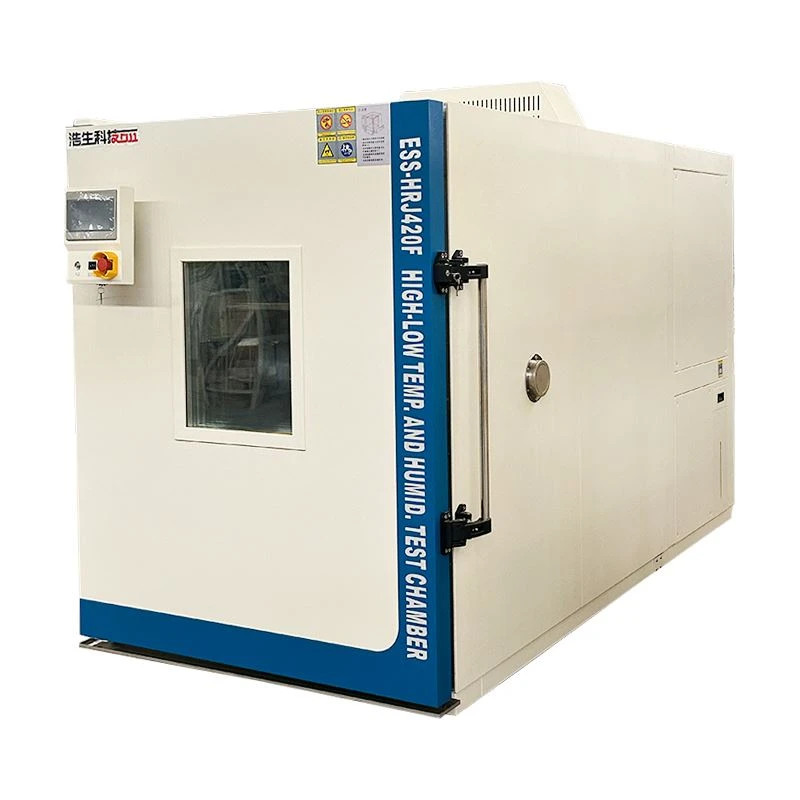

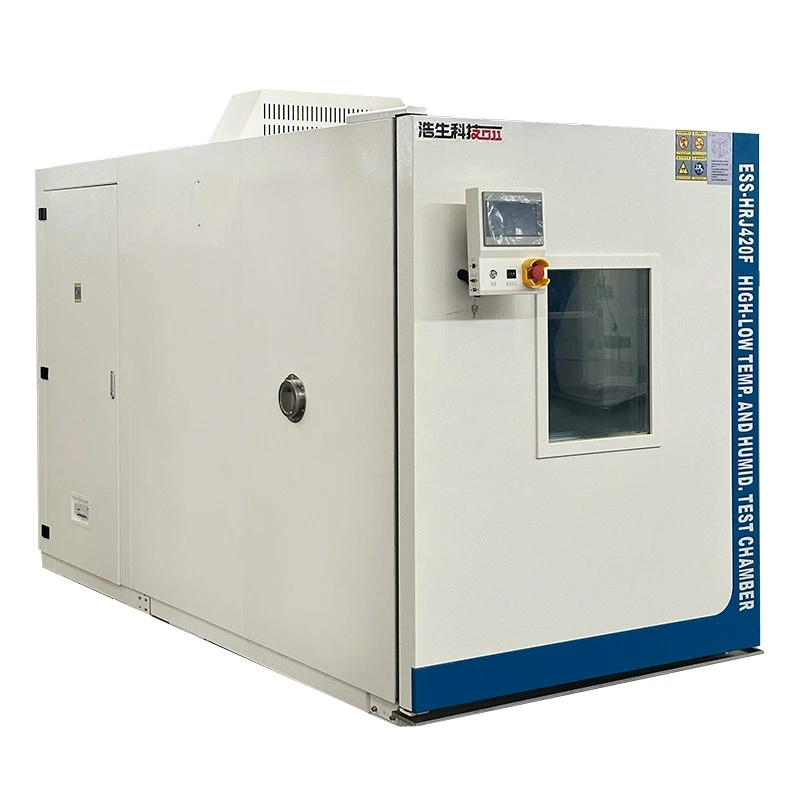

large environmental chamber features
Provides a large 2 cubic meter testing space to meet the testing needs of large batches or large samples.
Temperature fluctuation ≤ ±0.5℃ (constant state), ensuring stable testing conditions.
Temperature uniformity ≤ 2℃ (constant state), ensuring consistent temperature throughout the chamber.
Temperature range: -40℃ to +150℃, humidity range: 25% to 98% RH.
Heating rate up to 3℃/min, cooling rate ≥ 1℃/min (no load), improving testing efficiency.
Equipped with a 400×500mm observation window for real-time monitoring of sample status within the chamber.
Standard configuration includes two layers of stainless steel partitions.
Provides complete product manuals, certificates of conformity, and technical documents for user convenience and acceptance.
Power 15.5kW, ensuring stable operation even under extreme conditions.
Provide an operation manual, including operation, daily maintenance, and usage precautions, to ensure users can operate the equipment independently.
Other optional environment chambers with specifications
|
|
HS01040SDF |
0.45×0.48×0.5 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, the screen embedded at the top. |
|
HS02540SDF |
0.55×0.65×0.7 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS05040SDF |
0.7×0.8×0.87 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10140SDF |
1×1×1 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10240SDF |
1×1.4×1.1 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10260SDF |
1×2×1.07 Temp. range:-40℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS01060SDF |
0.45×0.48×0.5 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS02560SDF |
0.55×0.65×0.7 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS05060SDF |
0.7×0.8×0.87 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10160SDF |
1×1×1 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10260SDF |
1×1.4×1.1 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, double door. |
|
|
HS10260SDF |
1×2×1.07 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, double door. |
|
|
HS10360SDF |
1.3×1.2×1.7 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen. |
|
|
HS10360SDF |
1.2×2.1×1.2 Temp. range:-70℃～＋150℃,humid. range: 25%RH～98%RH, 7-inch touch screen, double door |
First-class processing equipment
The company introduced the Bystronic laser cutting machine,CNC shearing machine, Accurpress CNC bending machine, spraying production line,structure foaming production line (rare processing equipment in the industry),27m long-span heavy-duty crane(Rare large-span heavy-duty crane in the industry,a must-have for the production of large walk-in test chambers)key production equipment.
The company is an environmental and reliability test equipment manufacturing enterprise with more complete equipment facilities, stronger production capacity and higher quality assurance level.
Our partner & Honor
FAQ
Q: What is the large environmental chamber delivery and installation cycle?
A: Delivery is expected to be arranged within 30 days after the contract is signed. We can provide remote video guidance for installation and commissioning. If needed, we can provide on-site installation and commissioning services.
Q: Is the large environmental chamber water-cooled or air-cooled? What are the requirements for on-site water and electricity?
A: This equipment uses water cooling. A power supply and cooling water source that meets the equipment requirements must be provided on-site (water temperature, water pressure, and water quality must meet the conditions specified in the technical agreement).
Q: Is long-term after-sales and technical support provided? How are vulnerable parts obtained?
A: We provide a 12-month warranty. In addition, we continuously provide paid technical support and original manufacturer vulnerable parts supply to ensure the equipment's lifetime usability.
