China Customized Thermal Shock Chamber Manufacturers Suppliers Factory - Wholesale Service

Your Professional Thermal Shock Chamber Supplier

Founded in 2011, Chongqing Hoson Technology Co., Ltd. is located in Chongqing, China, Hoson is an enterprise specializing in designing, manufacturing, selling and technical service of reliability and environmental simulation test equipment. The company is "Chongqing High-tech Enterprise", Hoson mainly produces and designs drying ovens, high and low temperature test chambers, temperature and humidity test chambers, customized test equipment, vacuum drying ovens, composite salt spray chambers and other products.

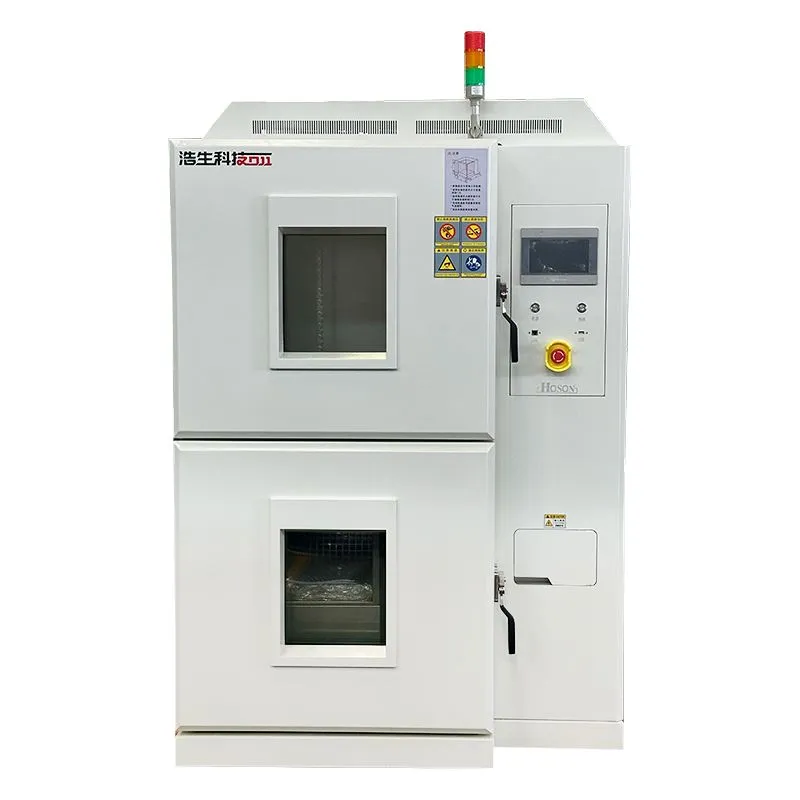

Thermal Shock Environmental Chambers
Thermal shock environmental chambers are primarily used to test a product's ability to withstand rapid transitions between extreme high and low temperatures. By simulating instantaneous temperature

view more
Thermal Shock Test Equipment
A temperature shock chamber (also known as a thermal shock test chamber) is a critical testing device used to evaluate the tolerance of electronic components, electronic products, materials, and

view more
Temperature Shock Chamber
Single Chamber with Air Exchange (Three-Chamber Type), damper driven by pneumatic cylinder, transition time ≤5 seconds

view more
Temperature Shock Test Chamber
The three-chamber temperature shock chamber is primarily used to test the tolerance of products, components, and parts to rapid switching between extreme high and low temperatures. Compared to the

view more
Thermal Shock Testing Equipment
To meet the demands of high-standard temperature shock testing, the HS03060CJ3I three-chamber temperature shock chamber provides an efficient and reliable solution. The equipment boasts a 300L

view more
Thermal Shock Testing Machine
Thermal shock environmental chamber is a crucial step in verifying a product's environmental adaptability. The HS01060CJ2 precisely induces potential defects in test samples by rapidly switching

view more

Why choose us

Certifications

The company passed the ISO9001, ISO14001, ISO45001 and other system certifications.

Design System

For the Large Customized Equipment：Within 7-15 days after the contract is signed, we will provide the 3D drawing to you for review, and then put it into production after the review is passed.

Our Service

After the warranty period, we provide users with free product instruction manuals, maintenance consultations, and technical consultations. Replacement parts will be charged at our discretion.

Temperature shock test chamber Technical Specifications

Category	Detailed Specifications & Features
Model & Volume	HS03060CJ3I, Workspace Volume 300L (670×970×460mm)
Shock Method	Single Chamber with Air Exchange (Three-Chamber Type), damper driven by pneumatic cylinder, transition time ≤5 seconds
Temperature Range	Shock Range: High Temp +60℃ ~ +150℃, Low Temp -55℃ ~ Ambient Extreme Range: High Chamber up to +200℃, Low Chamber down to -75℃
Core Performance	Temperature recovery time ≤5 minutes, Temperature fluctuation ≤±0.5℃, Temperature deviation ≤±2.0℃
Load Capacity	Internal shelf load capacity ≤20Kg/layer, robust structure meets heavy load testing requirements
Custom Design	1. Integrated Water Cooling System: Standard equipped with chiller unit, ensures heat dissipation and stability under high power. 2. Entrance Adaptation: Overall design ensures passage through 2.3m x 2.3m doorways. 3. Spare Wear Parts: Spare parts like platinum resistors and over-temperature protectors provided with the chamber.
Refrigeration System	Cascade compression refrigeration, core compressors from international brands. Utilizes water-cooled condensation, paired with a chiller unit, for powerful and stable cooling performance.
Control System	Core controller utilizes Siemens PLC, paired with a 7-inch color touch screen, supports Chinese/English interface, ensuring stable and reliable operation.
Data & Communication	Equipped with USB interface for test data and curve export; features RS485 communication interface for remote monitoring.
Safety Protections	Comprehensive multi-level safety protection: Independent over-temperature protection, multiple compressor protections, cooling water shortage protection, power anomaly protection, grounding protection, etc.
Factory Advantage	Self-owned factory with full-process capabilities from sheet metal processing to final assembly. Provides professional installation and after-sales: responsible for unloading, moving to specified location, and offers 2-year free warranty with 7x24 quick response.

The Other temperature shock test chamber for Your Selection

Three-zone	HS02060CJ3I	0.67×0.65×0.46. Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS02060CJ3II	0.67×0.65×0.46 Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS03060CJ3I	0.67×0.97×0.46 Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS03060CJ3II	0.67×0.97×0.46 Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS05060CJ3I	0.67×0.97×0.78 Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS05060CJ3II	0.67×0.97×0.78 Temperature shock range:high temp.60℃～+155℃, low temp. -55℃～room temp.
	HS10160CJ3II	11×1×1.15 Temperature shock range:high temp.60℃～+100℃, low temp. -60℃～-10℃.
Two-zone	HS01060CJ2	Hatchback basket:0.3×0.46×0.35. Temperature shock range:high temp.60℃～+150℃, low temp. -65℃～room temp.
	HS03060CJ2	Hatchback basket:0.5×0.61×0.4. Temperature shock range:high temp.60℃～+150℃, low temp. -65℃～room temp.
	HS05060CJ2	Hatchback basket:0.6×0.66×0.45. Temperature shock range:high temp.60℃～+150℃, low temp. -65℃～room temp.
	HS10160CJ2	Hatchback basket:0.7×0.85×0.8. Temperature shock range:high temp.60℃～+150℃, low temp. -65℃～room temp.
	HS10260CJ2	Hatchback basket:1×1×1.1. Temperature shock range:high temp.60℃～+80℃, low temp. -70℃～room temp.
	HS10260CJ2	Hatchback basket:0.8×1.4×1. Temperature shock range:high temp.60℃～+150℃, low temp. -50℃～room temp.
	HS10260CJ2	Hatchback basket:0.8×1.4×1. Temperature shock range:high temp.60℃～+125℃, low temp. -55℃～room temp.

Features

Rapid Temperature Transition
A thermal shock test chamber simulates severe temperature variations to evaluate materials' durability. Rapid temperature transition is a vital feature, gained by rapidly transferring test samples between hot and cold zones or adjusting airflow patterns.

Temperature Range Capabilities
The temperature range capabilities of the thermal shock test chamber describe its capabilities to test materials to intense high and low temperatures. This functionality ensures accurate, and controlled changes within specified temperature changes, recreating real-world heat and cold exposure.

Chamber design and construction

The construction and design of a thermal shock test chamber are critical for guaranteeing accurate temperature changes. It includes two or three zone chambers (hot, cold, and ambient), efficient insulation, and automated movement systems ensuring rapid temperature shifts.

Control and Instrumentation

Control and Instrumentation in Thermal shock test chambers manage temperature changes maintaining accurate test environments. The sensor tracks temperature fluctuations as controllers regulate and automate chamber processes, ensuring precision.

Safety Features

Safety features in Thermal shock test chambers guarantee consistent performance and user security. This comprises over-temperature safety, fail-safe shutdown features, and heat-resistant insulation to block heat from escaping.

Specifications of Thermal Shock Chambers

The specifications of thermal shock chambers are described below:

Test Space Volume

it is measured in liters and could range from 60L to 120L.

Number of Areas

For the three types of thermal shock chambers, there is a maximum of two areas, which could be fixed or converted.

Temperature range hot area

This temperature typically ranges from 50°C to 220°C or could be other designs.

Test Space Dimensions

Depending on the model and type the least dimension could be 3.8m to 6m

Loading Capacity Maximum

Maximum loads for samples or components range from 20kg to 100kg depending on model and type.

Refrigeration Unit

It is either air-cooled or water-cooled.

Rated Power

Ranges from 8kW to 14kW or more depending on a particular model.

Well-designed equipment for greater efficiency

Our temperature shock test chambers can be individually configured and expanded with numerous options:

External air-cooled or water-cooled condensers for optimal integration into your infrastructure
Higher test specimen weights supported thanks to reinforced baskets and robust construction
Feed-throughs: Standard, notch, and handhole feed-throughs for cables, sensors, or lines
Monitoring & interfaces: Integration of data loggers and measuring systems in accordance with international standards

Thermal shock test chamber Safety protection device

Refrigeration System
(1) Compressor overpressure protection
(2) Compressor electrical overheating
(3) Compressor motor overcurrent

Electrical System
1.Thermal shock testing machinecan adjust the over-temperature protection for safety.
2.The test space has a temperature fuse for protection.
3.The air conditioning channel can experience overtemperature, which needs protection.
4.There is a protector for leakage and short circuit situations.
5.The total power has phase sequence protection.
6.Overload circuit break protection is in place for safety.
7.Load short circuit is protected against as well.

Our Certificate

productcate-1-1

FAQ

Q: What's the lead time for orders?

A: Standard models ship in 15–30 days; customized units require 30–45 days.

Q: How to Select the Most Suitable Instrument?

A: Please provide your testing requirements and specifications, and our instrumentation team will deliver personalized solutions tailored to your needs.

Q: How do I monitor the progress of my instrument's production?

A: We will maintain full-process transparency by providing real-time progress reports for all equipment purchases and customizations, ensuring complete peace of mind.

Q: Do you provide after-sales service overseas?

A: Yes, we have partnered service centers in key regions.

Q: Do you offer customization services for specialized testing equipment?

A: Absolutely! We specialize in providing customized instrument solutions. Our engineering team can tailor equipment to your specific standards, including dimensional specifications, testing parameters, and compliance requirements. You're welcome to share your project details for us to develop a precise solution.

Q: What documents do you provide for export?

A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: May we arrange a factory visit prior to purchase?

A: Certainly! We warmly welcome your visit and will arrange hotel accommodations as well as airport pickup for your delegation.

We're well-known as one of the leading thermal shock chamber manufacturers and suppliers in China, featured by quality products and low price. Please feel free to wholesale customized thermal shock chamber made in China here from our factory. Contact us for more details.

Temperature Shock Test Chamber, thermal shock chamber, Thermal Shock Testing Machine
