Application
High temperature chambers are essential testing equipment in fields such as aerospace, automotive, home appliances, and scientific research. They are used to test and determine the parameters and performance of electrical, electronic, and other products and materials after undergoing high-temperature or constant-temperature testing.
Features
Three-channel airflow structure creates transverse airflow, ensuring uniform heating of the sample surface with a temperature uniformity of ≤2℃. (Superior temperature uniformity compared to single-channel structures).
Sample rack: 2 shelves, 3 or 4 shelves optional. (Please specify before ordering).
Maximum temperature: +300℃, +450℃, +600℃.
Various standard models with internal volumes of 91L, 216L, 512L, 1000L, and 2028L are available.
5. Casters can be installed on the bottom of the equipment for easy movement.
Do not allow children without adult supervision to use this product alone, children should not be left alone with product accessories, risk of choking.
Standard ovens and customized ovens can be made.
Over-temperature protection enhances reliability and safety.
If you have programming requirements, you can install program control instruments or touch screen instruments.
High Temperature Test Chamber Specifications
|
Product Name |
High temperature test chamber |
|||||
|
Model |
WG3001 |
WG3002 |
WG3005 |
WG301 |
WG302 |
|
|
Performance |
Temp. Range |
RT+20～＋300℃ |
||||
|
Temp.Fluctuations |
≤1℃(≤±0.5℃,Expressed according to GB/T5170-1996) |
|||||
|
Temp. Uniformity |
≤2℃(RT+20℃～＋200℃,150mm away from the inner wall test) |
|||||
|
Temperature Deviations |
±2℃(RT+20℃～＋200℃) |
|||||
|
Specification |
Working Room Dimensions(mm) |
450×450×450 |
600×600×600 |
800×800×800 |
1000×1000×1000 |
1200×1300×1300 |
|
Outer Dimensions Around(mm) |
635×1040×820 |
790×1200×1000 |
1100×1500×1200 |
1300×1750×1500 |
1500×2050×1900 |
|
|
Content Volume |
91L |
216L |
512L |
1000L |
2028L |
|
|
Power(KW) |
1.5KW |
2.9KW |
6.4KW |
9.9KW |
15.9KW |
|
|
Power Supply |
AC220V±10%,50Hz±1Single-phase + grounding wire, protective grounding resistance is less than 4Ω |
380V±10%,50Hz±1. Three-phase four-wire + grounding wire, protective grounding resistance is less than 4Ω |
||||
|
Shelf |
2 adjustable shelves |
|||||
|
Disposition |
Structural |
Integral, three-duct structure forms a horizontal transverse wind flow,so that he surface of the sample is heated evenly |
||||
|
Exterior Material |
Cold-rolled steel plate with electrostatic double-sided spraying. |
|||||
|
Internal Material |
High quality stainless steel plate |
|||||
|
Heater |
Nichrome electric heater |
|||||
|
Actuators |
Solid state relays |
|||||
|
Insulation |
100mm Fiberglass |
|||||
|
Door Seal |
Silicone rubber seals |
|||||
|
Controller |
High-precision temperature controller, the controller adopts digital display, which can display and set test parameters |
|||||
|
Safety Devices |
Heater short circuit, working room over-temperature protection, blower motor overheat etc., improve the safety of use |
|||||
|
Remarks |
The inner and outer dimensions are marked as：D×W×H; Recommended conditions for device use：Ambient temperature 5℃～＋30℃,Ambient humidity：≤85%RH; The above data are measured under no-load conditions. |
|||||
Standard shipping documents with high temperature test chamber
|
Product Instruction Manual |
1 copy |
|
Instrument Instruction Manual |
1 copy |
|
Product Certificate |
1 copy |
|
Electrical Schematic Diagram |
1 copy |
|
List of Electrical Components |
1 copy |
|
Shelf |
As standard, each high temperature chamber is equipped with 2 shelves. |
High Temperature Test Chamber Advantages
1. High-tech Enterprise certification with 25 years testing equipment manufacturer.
2.Owned factory premises covering 22,691 square meters.
3. Full-process in-house production.
4. One-stop testing solution provider.
5. ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certificated factory.
6. Bulk ordering would be with a lower price.
7. Small MOQ is available of course.
8.We have much experience in customized high temperature test chambers and have many case photos and videos available for your reference.
Our Services
3D Design Review: For large or customized high temperature test chambers, we will provide design drawings for your review within 7 days of contract signing. Production can begin once the review is approved.
12-month free warranty and 24-hour online service.
Product images and videos are available before shipment.
Product performance is tested before leaving the factory, and we can provide you with factory inspection reports.
Lifetime technical support.
High Temperature Test Chamber Packing & Delivery
1. Sturdy wooden crates or reinforced corrugated carton to ensure the safety of the equipment during long-distance transportation.
2. Special markings can be affixed upon customer request.
3. Tracking numbers are provided for your convenience.
Our partner & Honor
FAQ
Q: What are the advantages of your equipment compared to other manufacturers?
A: Our advantage lies in system reliability. Smaller manufacturers often "compare configurations and prices," but equipment reliability depends on system integration. We possess end-to-end manufacturing capabilities and a standardized system, effectively mitigating the risk of systemic failures and providing long-term stable performance.
Q: How can I trust your capabilities?
A: We strongly recommend and welcome your "video factory visit." You can view our processing equipment, production site, and even the factory's property ownership certificate in real time via video conference. This is more intuitive and credible than any promotional material.
Q: Do you support non-standard customization?
A: Yes. We specialize in non-standard customized equipment and have extensive experience. We have customized a 2520m³ large-scale low-temperature environment test chamber for a Fortune 500 company. Please provide your specific requirements (temperature, dimensions, functions, etc.), and we will provide you with a professional customized high temperature test chamber solution.
Q: What is the difference between a three-duct system and a single-duct system? How should I choose?
A: The choice between a three-duct and a single-duct system mainly depends on your test's requirements for temperature uniformity. A three-duct high temperature chamber can achieve a temperature uniformity of ≤2℃, while a single-duct oven achieves ±2.5%℃.
♦ The following is a schematic diagram of the air duct structure for your reference:
The "three-duct" structure features a large outlet area and a large return area, with airflow organized as a "piston flow," or laminar flow. This results in good temperature field uniformity.

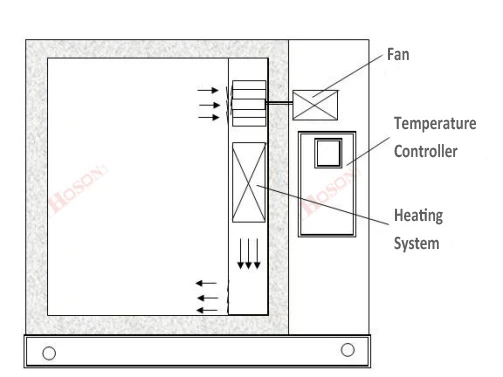

Schematic diagram of the internal air duct structure of a traditional drying oven ("single air duct" structure).
